$13.53The Story
iGaging's Digital Readout makes affordable high-tech woodworking a breeze!
Please select your preferred length.

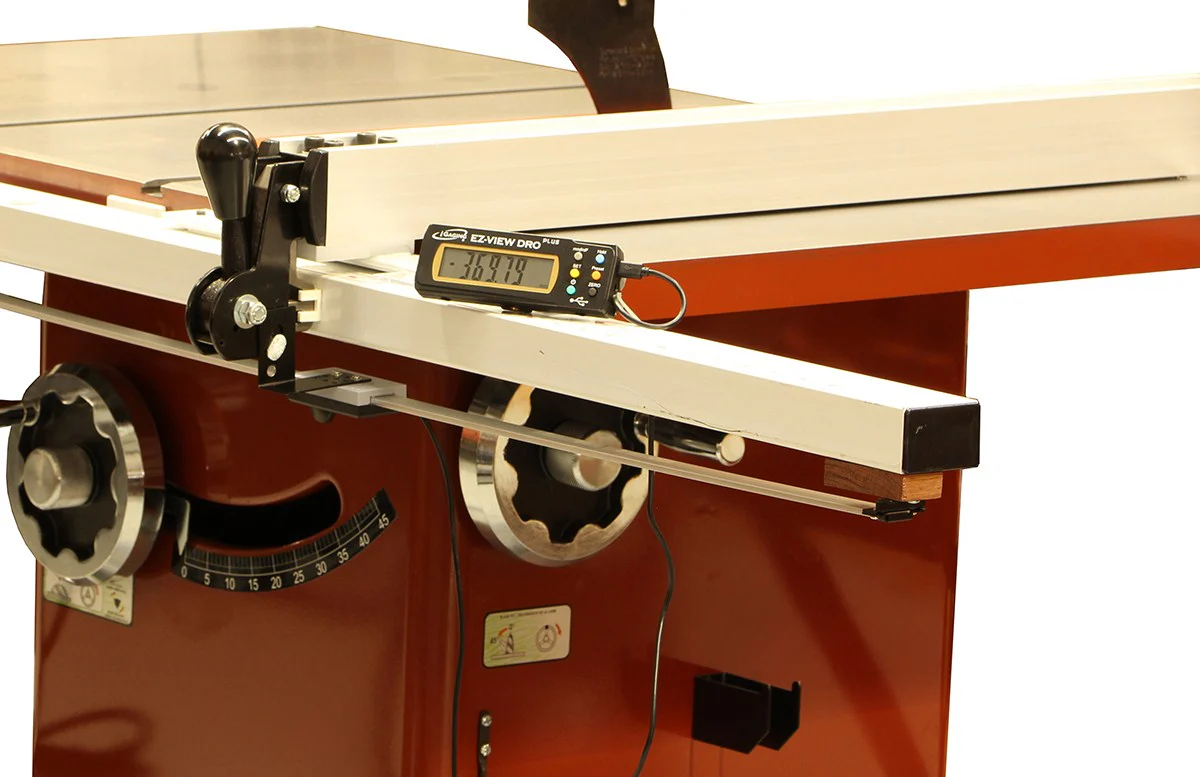

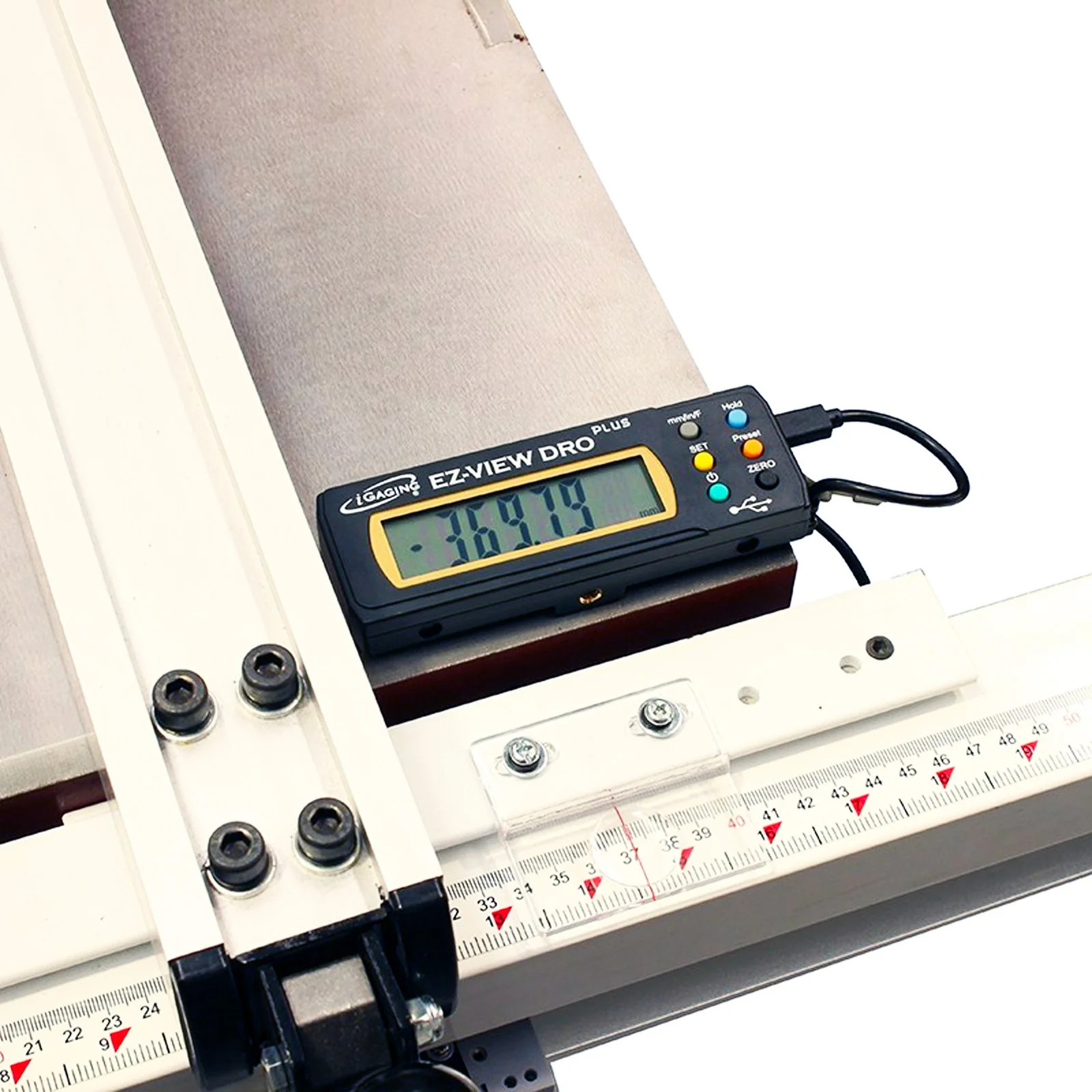

iGaging's EZ-View Pro DRO can be adapted to any number of woodworking machines such as router lifts or fences, planers, table saws, or metalworking/engineering tools such as milling machines, metal lathes etc. The sensor is connected to the read-out with a 1300mm cord that can be disconnected for easy installation and access.
The large, easy to read display reads metric in 0.05mm increments as well as decimalised and fractional imperial in 1/64in increments and measures at 120" per second. The readout can be easily installed using magnets, double face tape, or screws. Vertical and horizontal slider mounting hardware is included.
- New-generation sensor and processor provides close to real-time read-outs of adjustments on the display.
- Massive new crystal-clear readout display makes it much easier to read and with integrrated magnets in the back - easy to place on machines.
- Ability for (user-supplied) 3V power supply adapter to be plugged in so batteries are no longer needed to run it.
- Data port to hook up USB Connector Kit to record direct to computer.
- Includes wall-mount bracket to setup display permanently.
- IP-54 water/dust resistant rated.
- Hardened stainless steel body for long life.
- Sensor connects with DRO via the attached Micro USB cable.
0-150mm range accurate to 0.025mm over its length
0-300mm range accurate to 0.038mm over its length
0-610mm range accurate to 0.050mm over its length
0-914mm range accurate to 0.064mm over its length
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
iGaging's Digital Readout makes affordable high-tech woodworking a breeze!
Please select your preferred length.
iGaging's EZ-View Pro DRO can be adapted to any number of woodworking machines such as router lifts or fences, planers, table saws, or metalworking/engineering tools such as milling machines, metal lathes etc. The sensor is connected to the read-out with a 1300mm cord that can be disconnected for easy installation and access.
The large, easy to read display reads metric in 0.05mm increments as well as decimalised and fractional imperial in 1/64in increments and measures at 120" per second. The readout can be easily installed using magnets, double face tape, or screws. Vertical and horizontal slider mounting hardware is included.
- New-generation sensor and processor provides close to real-time read-outs of adjustments on the display.
- Massive new crystal-clear readout display makes it much easier to read and with integrrated magnets in the back - easy to place on machines.
- Ability for (user-supplied) 3V power supply adapter to be plugged in so batteries are no longer needed to run it.
- Data port to hook up USB Connector Kit to record direct to computer.
- Includes wall-mount bracket to setup display permanently.
- IP-54 water/dust resistant rated.
- Hardened stainless steel body for long life.
- Sensor connects with DRO via the attached Micro USB cable.
0-150mm range accurate to 0.025mm over its length
0-300mm range accurate to 0.038mm over its length
0-610mm range accurate to 0.050mm over its length
0-914mm range accurate to 0.064mm over its length
