Milescraft HingeJigPLUS with PinDoctor & Router Bit for Door Hardware Installation

The HingeJigPLUS™ by Milescraft is your one-stop solution for door installation work.

This jig helps to rout and install door and jamb/frame hinges, latches, and strike plate mortises quickly and accurately. The included bonus PinDoctor™ assists in removing your old door, and the custom router bit with ball bearing cuts clean and smooth door hinge mortises.

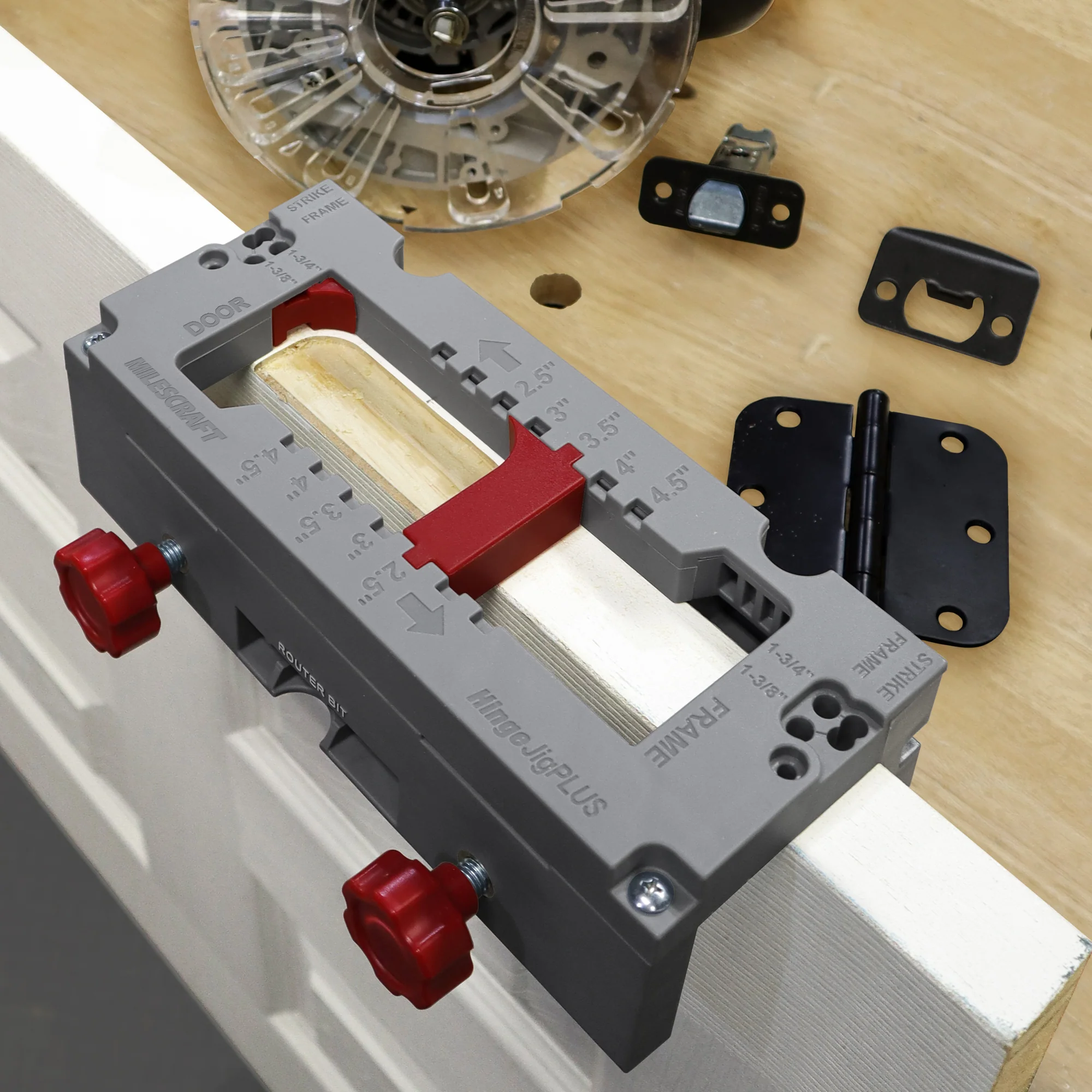

The dual-clamping design of the HingeJigPLUS™ mounts quickly and holds firm to ensure cuts are clean and accurate. No need for screws or nails which can damage your door.

Please note: Built for North American style hardware.

Self-Clamping

Padded, dual self-clamping design sets up quickly and prevents damage to doors caused by mounting screws or nails

Fits All Doors

Adjustable settings allow jig to be used on all standard size 1-3/8in and 1-3/4in thick doors.

Built in Depth Setting

Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges.

Built-in Storage

Contains built in storage compartments for router bit and available self-centring hinge bit (not included) for convenient retrieval.

Works with Multiple Hinge Sizes

Rout door hinge mortises for 2-1/2in to 4-1/2in hinges.

Rout Different Radiuses

Cut professional hinge mortises with 1/4in, 5/8in, or square corners. (Chisel Required)

Drop in Latch & Strike Templates

Latch mortise size compatibility: 1in x 2-1/4in, 1-1/8in x 2-1/4in, and 1-1/8in x 2-3/4in.

Strike plate size compatibility: 1-1/2in x 2-1/4in and 1-1/8in x 2-3/4in.
